TD75 stationary belt conveyor
Classification:
TD75 stationary belt conveyor is a general-purpose products with unified design in China. Its main parameters and performance are in line with ISO international standards. It is composed of single or multiple units to transport materials.
Contact:
PRODUCTS
Details Introduction
Overview
TD75 stationary belt conveyor is a general-purpose products with unified design in China. Its main parameters and performance are in line with ISO international standards. It is composed of single or multiple units to transport materials.
Major component

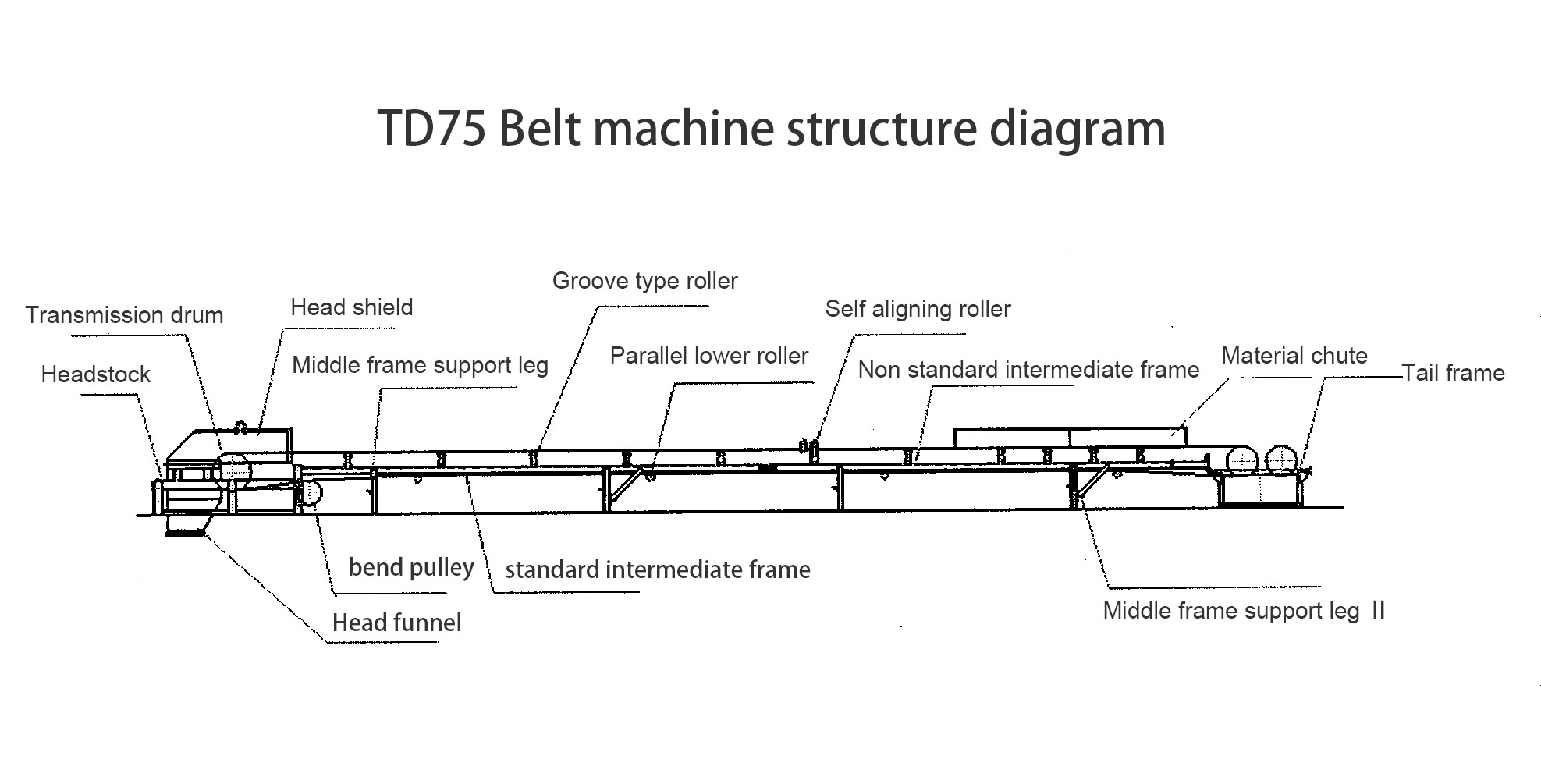

Head and tail wheel, frame, all kinds of rollers, rollers, tape, tension device, counterweight block, safety device, driving device, control device, etc.
Structural form
According to the conditions of use, it is classified into: horizontal transport, uphill transport, downhill transport, two-way transport, head drive, multi-point drive;
According to the structural characteristics, it is classified into: telescopic belt conveyor, fixed drop belt conveyor, rope frame hanging belt conveyor, steel cable traction belt conveyor, pipe frame quick contact fuselage belt conveyor, channel steel Angle iron fuselage belt conveyor, tubular belt conveyor;

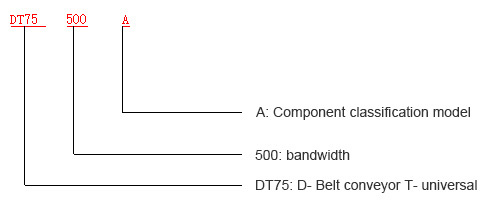

Model description
Application working condition
The accumulation proportion of the material that can be transported by the conveyor is within the range of 0.5-2.5/m3. Conveyor ambient temperature +40℃-10℃ range of use, for dust, explosion-proof, anti-corrosion requirements of the occasion, should take other measures.
Application industry
It can be used in coal, chemical industry, building materials, metallurgy, electric power, light industry, grain, port, ship, thermal power and other industries to transport bulk or into a piece of goods.
Main innovations:
● Large throughput.
● Save equipment floor space.
● Completely solve the transmission Angle that cannot be reached by the ordinary pattern belt conveyor. Smooth transition from horizontal to inclined (or vertical);
● Low energy consumption, simple structure, easy maintenance.
● High strength tape, long service life.
● Low overall investment cost, can save 20%-30% of the investment cost
● Suitable for conveying easily scattered powder, granular, small block, paste and liquid materials;
Main technical parameters
TD75 belt conveyor drive device and its combination form to meet the needs of user process equipment, power selection, etc., spare a: TDY oil-cooled electric drum drive (N≤15KW); b: ZQ gear reduction drive; c: NGW planetary gear reducer drive; d: XW, BW cycloidal pin gear reducer drive; e: Other forms of drive.
Conveyor capacity:
|
Section form |
Tape velocity（m/s） |
Bandwidth B（mm） |
|||||
|
500 |
650 |
800 |
1000 |
1200 |
1400 |
||
|
Transport capacity G（t/h） |
|||||||
|
Groove profile |
0.8 |
78 |
131 |
-- |
-- |
-- |
-- |
|
1.0 |
97 |
164 |
278 |
435 |
655 |
891 |
|
|
1.25 |
122 |
206 |
348 |
544 |
819 |
1115 |
|
|
1.6 |
156 |
264 |
445 |
696 |
1048 |
1427 |
|
|
2.0 |
191 |
323 |
546 |
853 |
1284 |
1748 |
|
|
2.5 |
231 |
391 |
661 |
1033 |
1556 |
2118 |
|
|
3.15 |
-- |
-- |
824 |
1233 |
1858 |
2528 |
|
|
4.0 |
-- |
-- |
-- |
-- |
2202 |
2996 |
|
|
Flat type |
0.8 |
41 |
67 |
118 |
-- |
-- |
-- |
|
1.0 |
52 |
88 |
147 |
230 |
345 |
469 |
|
|
1.25 |
66 |
110 |
184 |
288 |
432 |
588 |
|
|
1.6 |
84 |
142 |
236 |
368 |
553 |
735 |
|
|
2.0 |
103 |
174 |
289 |
451 |
677 |
922 |
|
|
2.5 |
125 |
211 |
350 |
546 |
821 |
1117 |
|
