SYDF pneumatic dome valve
Classification:
Pneumatic dome valve Inflatable feed valve Spherical air lock valve/inflatable Dome valve/bin pump feed valve The vent valve/inflatable feed valve is suitable for sealing delivery systems through loose, dry, non-viscous, flowing solid materials, especially power plant ash systems.
Contact:
PRODUCTS
Details Introduction
1 Product Introduction
Pneumatic dome valve Inflatable feed valve Spherical air lock valve/inflatable Dome valve/cabin pump feed valve ，the vent valve is suitable for sealing delivery systems through loose, dry, non-viscous, flowing solid materials, especially power plant ash systems. The closing of the dome valve is realized by the hemispherical spool and the rubber sealing ring that can be inflated. The opening and closing of the valve are carried out in the state of no pressure, and the combined control of gas and electricity is adopted. Through the remote control of the spool, the valve has the characteristics of flexible opening and long service life.
Dome valve is also called cabin pump feed valve, vent valve, inflatable dome valve, inflatable feed valve, it can cut off the flow of material into the pressure tank or static material column, and then closed to achieve seal. Thus, the filling rate of the pressure tank is guaranteed to be 100%, and there is no need to rely on the level meter of the sending tank, so the control principle is simple and reliable. When handling abrasive materials, an expandable pressure seal embedded in the dome seat ensures a differential working pressure between the front and back of the valve. The elastic expandable sealing ring can trap material particles to avoid the sliding of material particles due to pressure difference and wear on the seat and sealing ring. The displacement action of the rotating dome spire in the body allows the dense material column to rotate, and the dome valve filled with material can be closed and sealed through the filled material.
2 Features
Frictionless opening and closing, open freely, not easy to jam, and ensure that the sealing surface in the process of opening and closing without friction loss; Fast opening and closing speed.
After closing, the seal is inflated, and the flexible sealing ring is tightly attached to the dome under the action of high pressure, and the binding surface is banded, and the sealing performance is good.
Crankshaft design, valve opening is full section flow, and protect the dome valve seal ring;
Automatic monitoring of sealing pressure and alarm function to ensure good sealing;
SYDF inflatable dome valve is a new type of fast closing valve, it uses the best gas seal structure, valve opening and closing valve core and inflatable sealing ring without contact, the sealing ring is made of special formula rubber, can be widely used in the sealing of powder materials, is a key component in the pneumatic conveying system, widely used in electric power, metallurgy, chemical, food, pharmaceutical and other fields. The spool has no contact with the sealing ring, low resistance and long service life.
according to the different occasions by using different materials and hardening treatment on the Dome valve spool surface , it can ensure good close contact with the rubber sealing ring to ensure the reliability of the seal by smooth and hard surface of the spool, . Rubber sealing ring is made of special rubber, with high temperature resistance, corrosion resistance, wear resistance, aging resistance and other characteristics, long service life. When the valve is opened, the full flow of the feed port is unblocked. The valve is suitable for gas, liquid, semi-fluid and solid powder and other substances. Pneumatic actuator adopts linear cylinder or sector cylinder completely closed drive, output torque is large, reliable performance, can meet the harsh working conditions.

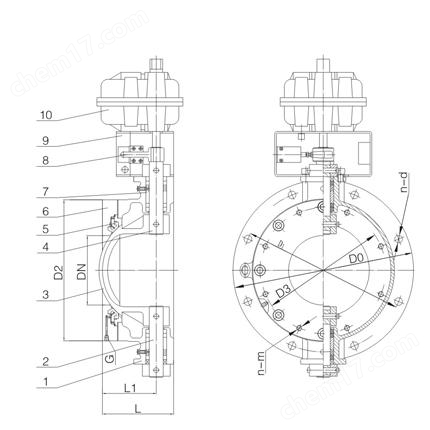

3 Main parts materials
|
Serial number |
Name |
Material |
Serial number |
Name |
Material |
|
1 |
Valve body |
WCB |
6 |
Seat board |
WCB |
|
2 |
Lower stem |
2Cr13 |
7 |
Septum |
F6a |
|
3 |
Hemispheroid |
WCB+spherical hard chrome plating |
8 |
Pendulum |
WCB |
|
4 |
Upper stem |
2Cr13 |
9 |
Bracket |
Q235 |
|
5 |
Seals |
Abrasion resistant rubber |
10 |
Pneumatics |
Finished parts |
Application Specifications:
|
Design & Manufacturing |
GB/T 12224 |
|
|
Dimensions of the connecting end |
The length of the structure |
Manufacturer standards |
|
Flange size |
Manufacturer standards |
|
|
Inspection and testing |
GB/T 9092 |
|
|
Material |
Carbon steel |
GB/T 12229 |
|
Stainless steel |
GB/T 12230 |
|
| indicator |
GB/T 12220 |
|
All text, data, and pictures are for reference only.
