XD-Ⅱ multi-tube cyclone dust collector
Classification:
XD-Ⅱ type multi-tube cyclone dust collector is an efficient dust collector and dust removal efficiency can reach more than 95%, the dust collector body resistance is less than 900Pa, the dust collector load adaptability is good, dust removal efficiency is more than 94% at 70% load . The cyclone in the cyclone collector is made of cast iron or ceramic and the thickness is greater than 6mm, so it has good wear resistance. It is the ideal equipment for industrial boiler flue gas dust removal and other dust treatment.
Contact:
PRODUCTS
Details Introduction
Overview
XD-Ⅱ type multi-tube cyclone dust collector is an efficient dust collector and dust removal efficiency can be over 95%, the dust collector body resistance is less than 900Pa, load adaptability is good, dust removal efficiency is over 94% at 70% load . The cyclone is made of cast iron or ceramic and the thickness is greater than 6mm, so it has good wear resistance. It is the ideal equipment for industrial boiler flue gas dust removal and other dust treatment.
Working mechanism
When the airflow rotates, dust particles in the airflow will be separated from the airflow due to centrifugal force. The technology of using centrifugal force for dust removal is called centrifugal dust removal technology. The equipment that uses centrifugal force for dust removal is called a cyclone dust collector.
The cyclone dust collector separates dust particles from the gas by centrifugal force after the dust containing gas enters the device along the tangential direction, achieving the purpose of flue gas purification. The airflow in a cyclone dust collector needs to repeatedly rotate many times, and the linear velocity of the airflow rotation is also very fast, so the centrifugal force on particles in the rotating airflow is much greater than gravity. For small diameter and high resistance cyclone dust collectors, centrifugal force can be up to 2500 times greater than gravity. For large diameter and low resistance cyclone dust collectors, centrifugal force is more than 5 times greater than gravity.
Main component
The dust collector is composed of cyclone body, hopper and volute (or cap), vibration ash cleaning device which consists of four parts: inlet and outlet, ash discharging system, electrical control system etc.

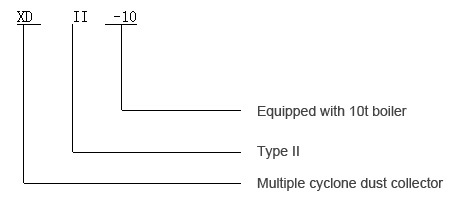

Model description
Range of Gas flow processing
10000~2000000m3/h, the outlet emission concentration is lower than 50-10mg/Nm3.
Applicable industry
Dusty gas purification and material recovery on building materials, metallurgy, electric power, coal mill dust collection, refractory industry .
Technical innovation points:
● Simple structure, no moving parts, no special auxiliary equipment, small footprint, less investment in manufacturing and installation.
● Operation, maintenance side, pressure loss, power consumption is not large, operation, maintenance costs are low, high separation efficiency for dust larger than 10 µ m
● Large operating flexibility, stable performance, not limited by the concentration & temperature of dusty gas. There are no special requirements for the physical quality of dust, and according to the different requirements of the production process, different materials can be used to make, or lined with various wear-resistant and heat-resistant materials to improve the service life
● Air leakage is prohibited at the hopper outlet.
Technical performance
|
Specification and model |
XD-Ⅱ-0.5 |
XD-Ⅱ-1 |
XD-Ⅱ-2 |
XD-Ⅱ-4 |
XD-Ⅱ-6 |
XD-Ⅱ-10 |
XD-Ⅱ-20 |
XD-Ⅱ-35 |
| Related boilers (t/h) |
0.5 |
1 |
2 |
4 |
6 |
10 |
20 |
35 |
| Gas flow (m3/h) |
1500 |
3000 |
6000 |
12000 |
18000 |
30000 |
60000 |
105000 |
| efficiency (%) |
＞95 |
|||||||
| Body resistance (Pa) |
＜900 |
|||||||
| Segmented particle size |
3.05 |
|||||||
| Weight |
310 |
570 |
960 |
1900 |
2910 |
6100 |
11750 |
20300 |
